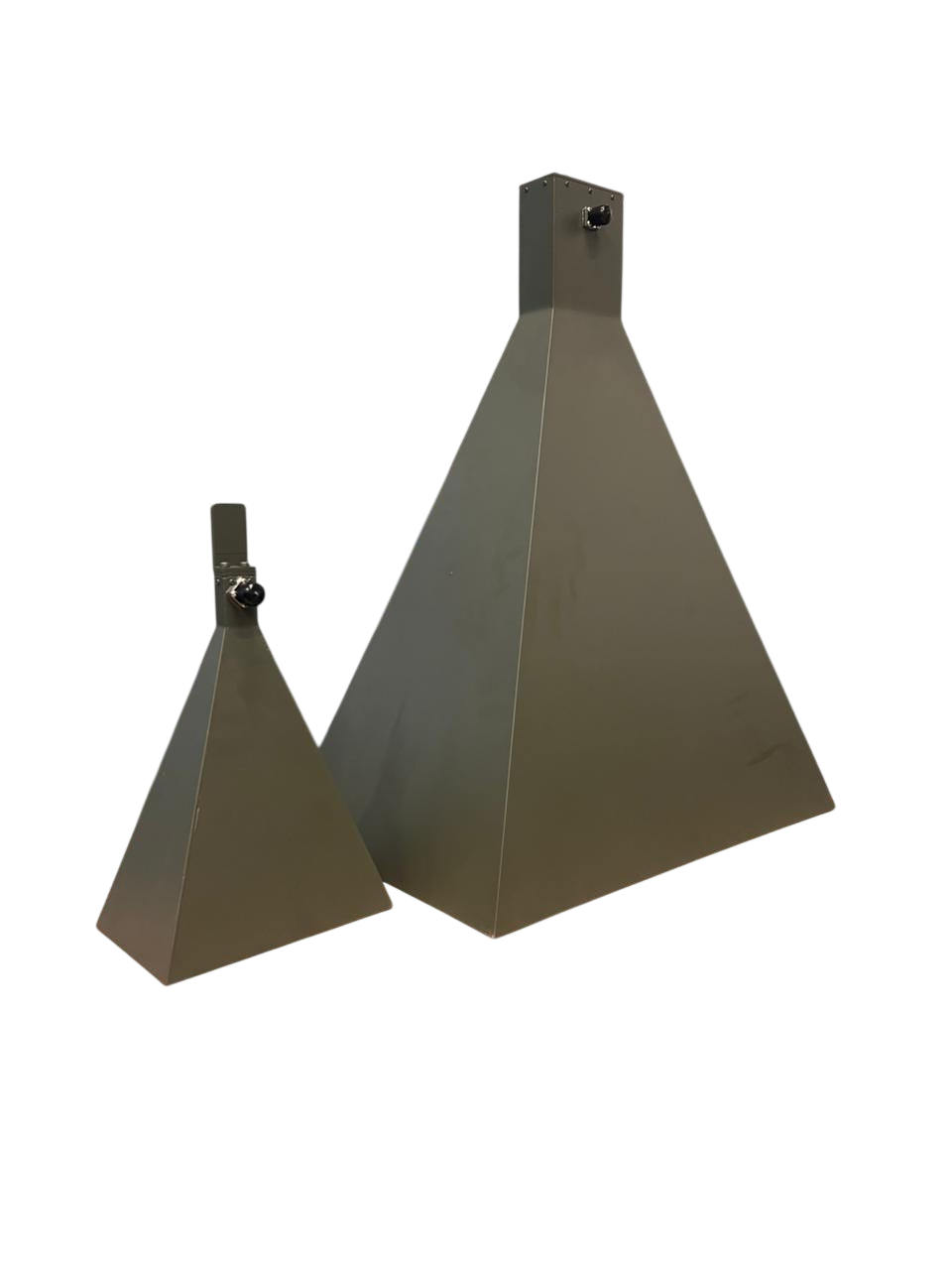

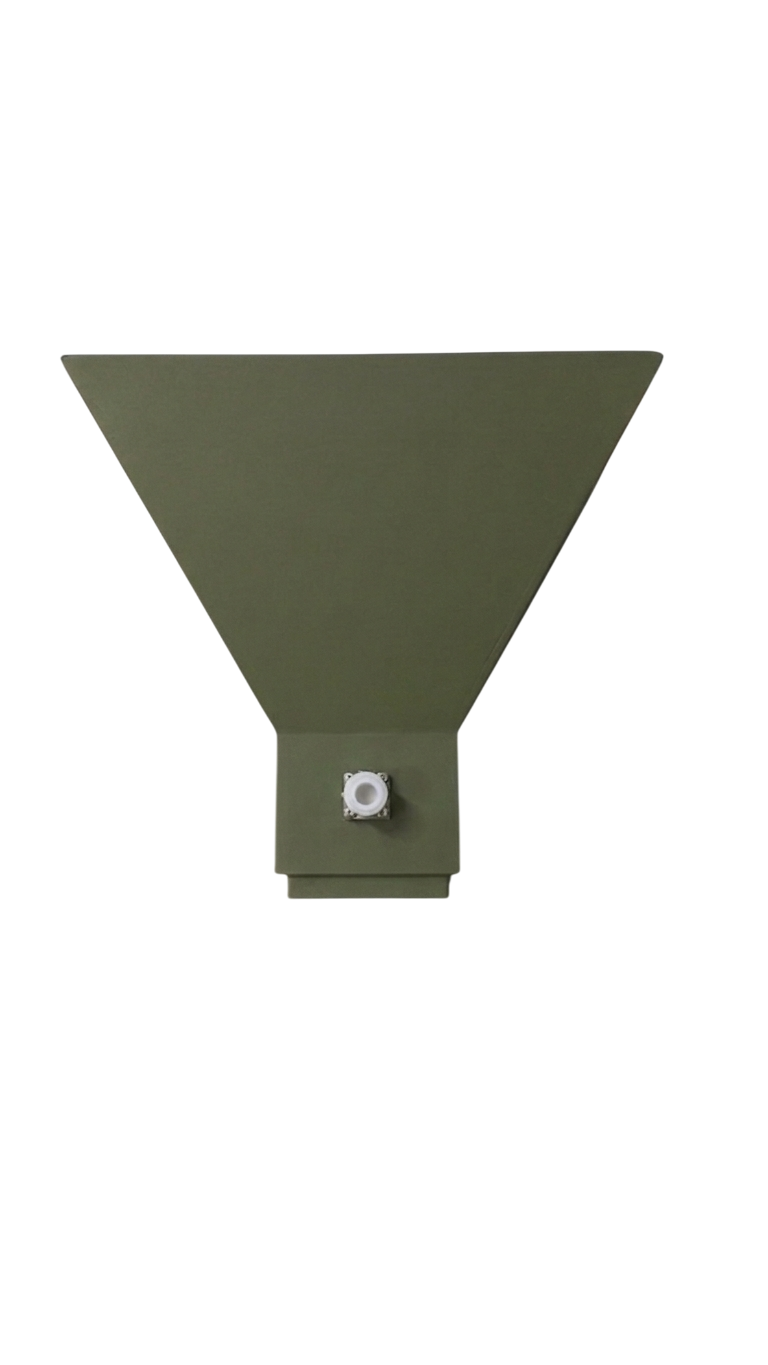

Horn Antennas

Standard. Custom. High-Gain. Wideband.

AntennaTec horn antennas are available in standard and custom configurations for applications requiring directional radiation, stable gain and reliable RF performance across wide frequency ranges.

Horn antennas are commonly used in radar, sensing, spectrum monitoring, electronic warfare, SIGINT, ESM, ECM, RWR, test and measurement, and specialist RF systems.

The range can include standard-gain, high-gain, broadband and application-specific horn antennas, with suitable connector, flange, radome and mounting options.

Custom horn antennas can be produced to meet specific requirements for frequency range, gain, polarisation, interface, mechanical size and deployment conditions.

PRODUCT NO	CATALOGUE NO	FREQUENCY (GHz)	VSWR	GAIN (dBi)	POLARIZATION	POWER c.w. (W)	CONNECTOR
AT-H-2-4-N	AT-H-2-4-N	2 - 4	< 2:1	12	linear	200	N-type
AT-H-3.7-7.2-N	AT-H-3.7-7.2-N	3.7 - 7.2	< 2:1	18	linear	200	N-type
AT-H-1.95-2.6-N	AT-H-1.95-2.6-N	1.95 - 2.6	< 2:1	18	linear	200	N-type
AT-H-7.85-9.5-N	AT-H-7.85-9.5-N	7.85 - 9.5	< 2:1	20	linear	200	N-type
AT-H-2-18-S	AT-H-2-18-S	2 - 18	< 1.5:1	12	linear	—	SMA
AT-H-4-40-K	AT-H-4-40-K	4 - 40	< 2:1	6-16	linear	—	K-type
